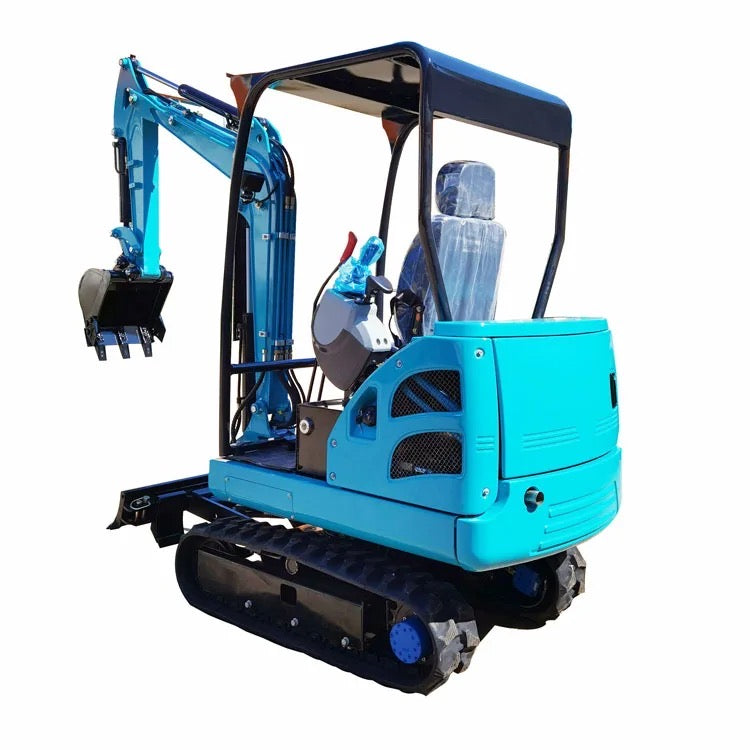

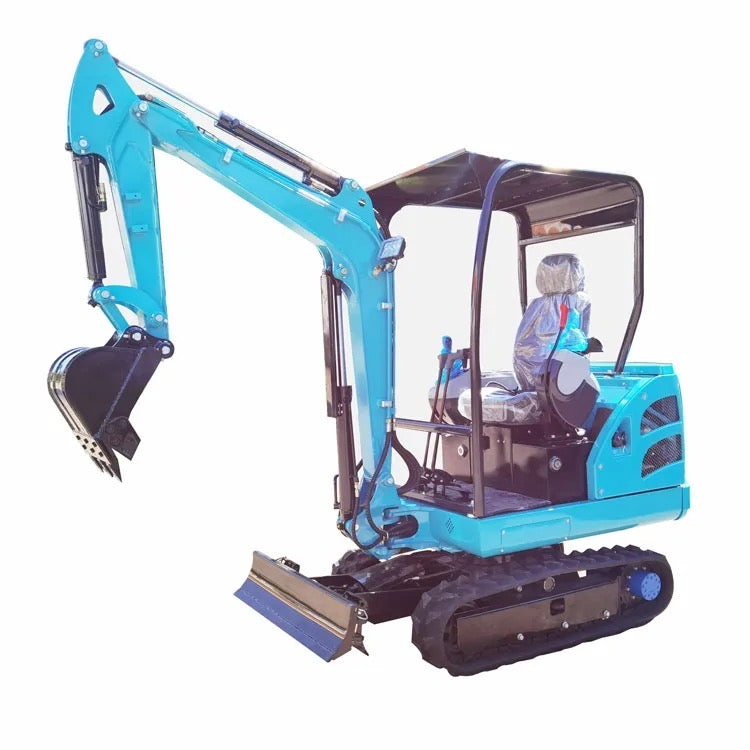

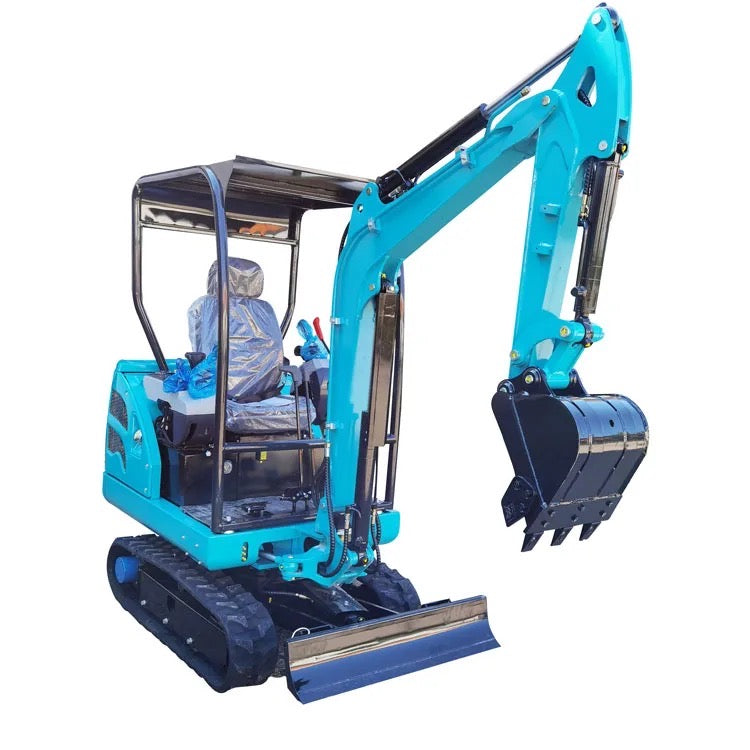

1.8 tonne excavator pro

Model
CX18B
Overall Dimensions
Overall width
1060 mm
Overall height
2300 mm
Overall length
3800 mm
Mini ground clearance
230 mm
Ground contact length of track
1090 mm
Track width
230 mm
Track gauae
820 mm
Bucket capacity
0.06 m³
Operating range
Boom length
1856 mm
Arm length
930 mm
Max digging reach
3793 mm
Max digging depth
2154 mm
Max digging height
3050 mm
Max dumping height
2217 mm
Mini swing radius
1820 mm
Rear swing radius
1048 mm
Max ground digging range
3690 mm
Max vertical digging depth
1500 mm
Specification
Unit
Operating weight
1880kgs
Engine
Model
3TNV74
Rated power
10.3KW/2400rpm
Hydraulic system
20Mpa
Hydraulic oil pump brand
Japanese Nachi
Walking motor Rotating motor brand
American Eaton
Swing system
10rpm
Travel speed
0-4.5km/h
Bucket digging force
14KN
Arm digging force
10KN
Grade ability
<35°（70%）
Ground pressure
30KPa
