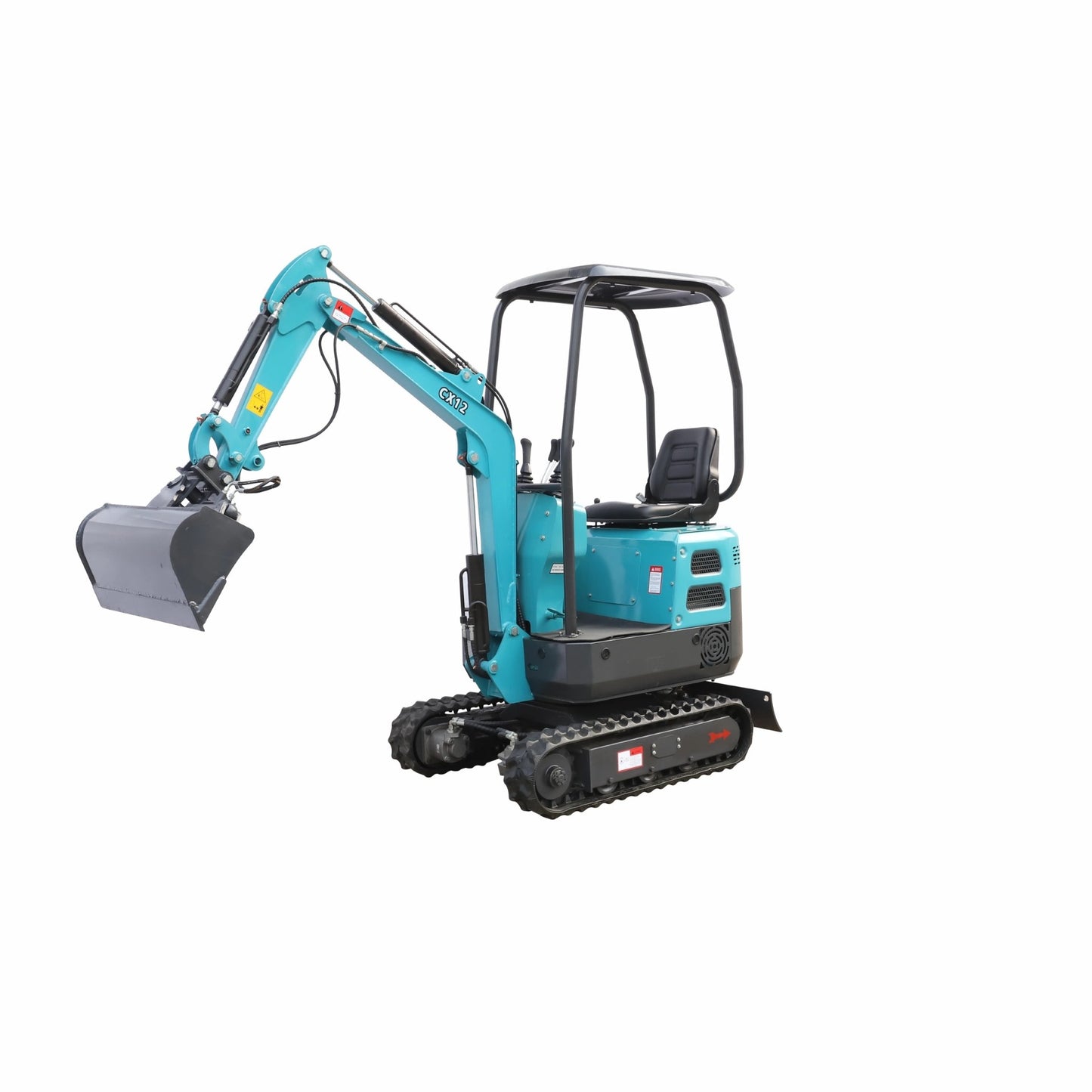

Model: CX12T Operating Weight 1180KGS Bucket Capacity 0.025CBM Width of Bucket 380 mm Length of Swing Arm 1560mm Length of Bucket Arm 793 mm Performance Rotation Speed (rpm) 10 Travel Speed (Km/h) 2.6 Grade Ability (%) 25 Ground Specific Pressure (Kpa) 25 Bucket Digging Force (kN) 9.6 Bucket Arm Digging Force (kN) 8.5 Engine Model of Engine Kubota D722
Rated Powder 14/3000(Kw/rpm) Type of Cooling Air Cool Fuel Consumption Rate 285 Working Area Maximum Digging Radius 3225 mm Maximum Digging Depth 1650 mm Maximum Digging Height 2740 mm Maximum Discharge Height 1970 mm Width of Bulldozer Plate × Height 1040*205 mm To Lift or Push Deep 170/220 mm Arm Rotation Angle No Main Size Total Length of Transport 2995 mm Total Width of Transport 1055 mm Total Height of Transport 2204 mm Width of Bus 905 mm Counterweight Clearance Above Ground 405 mm Track Grounding Length 980 mm Total Length of Track 1290 mm Width of track plate 180 mm Total Width of Track 1055 mm track 980 mm Minimum Ground Clearance 110 mm Minimum Turning Radius of the Front Working Device 1470 mm Tail Radius of Turn 850 mm
